Side (K110) series Thermal break window screen integrated casement window
-
Technical parameters:
Profile wall thickness 2.0mm -
Profile width:
frame 110mm/leaf 48mm -
Visible width:
frame 30mm/fan 55mm -
Mesh configuration:
0.8mm diamond mesh/0.45 high-definition mesh Rubber strip configuration: EPDM composite foam continuous bending sealing strip -
Insulation strip configuration:
PA66-GF25 nylon insulation strip -
Hardware system:
High quality hardware system+no base handle -
Glass configuration:
5+18A+5mm hollow tempered glass -
colour:
-

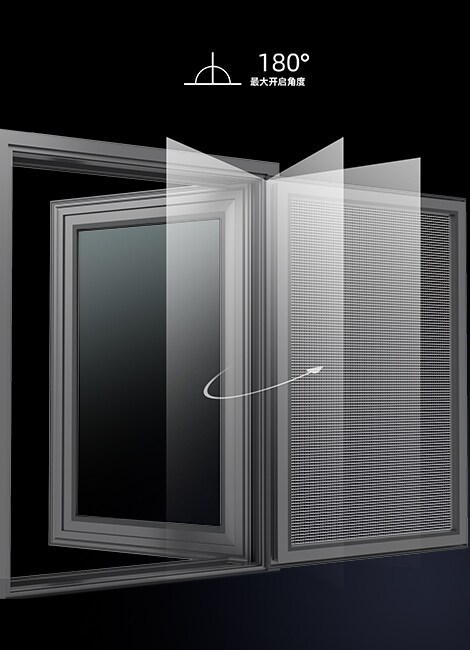

Opening angle
-

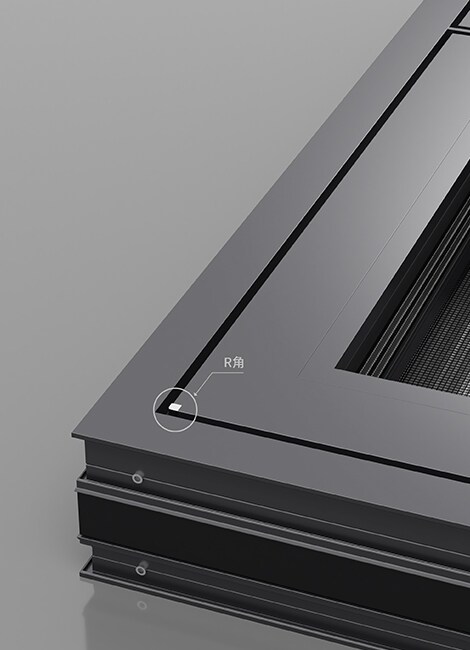

R-angle
-

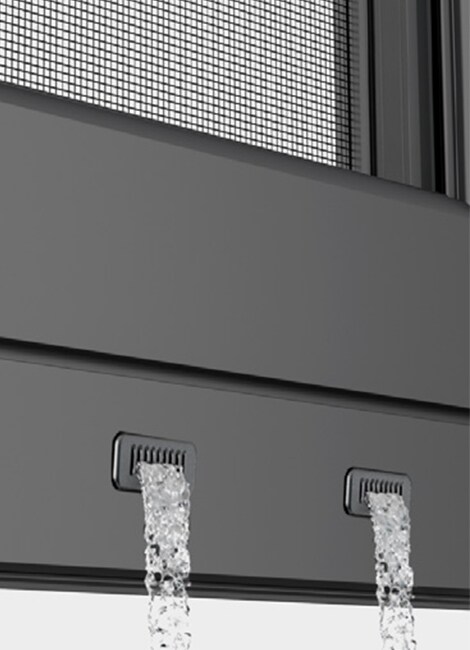

drainage system
