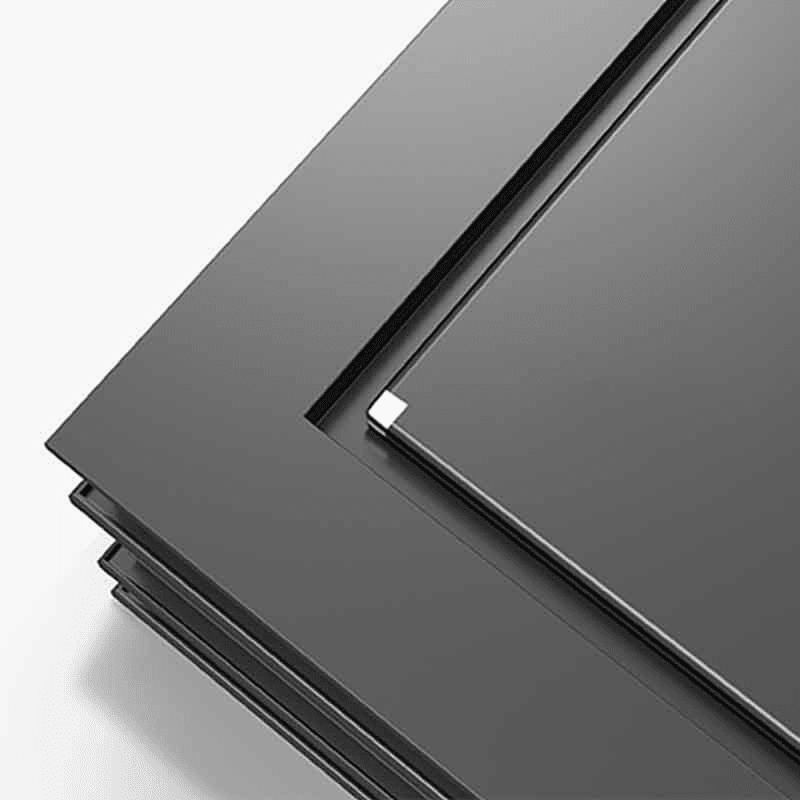

R-angle
High quality EPDM sealant strip fomms a tight and airtight whole inside the cham-ber, enhancing water and air tightness to achieve the best sealing effect.

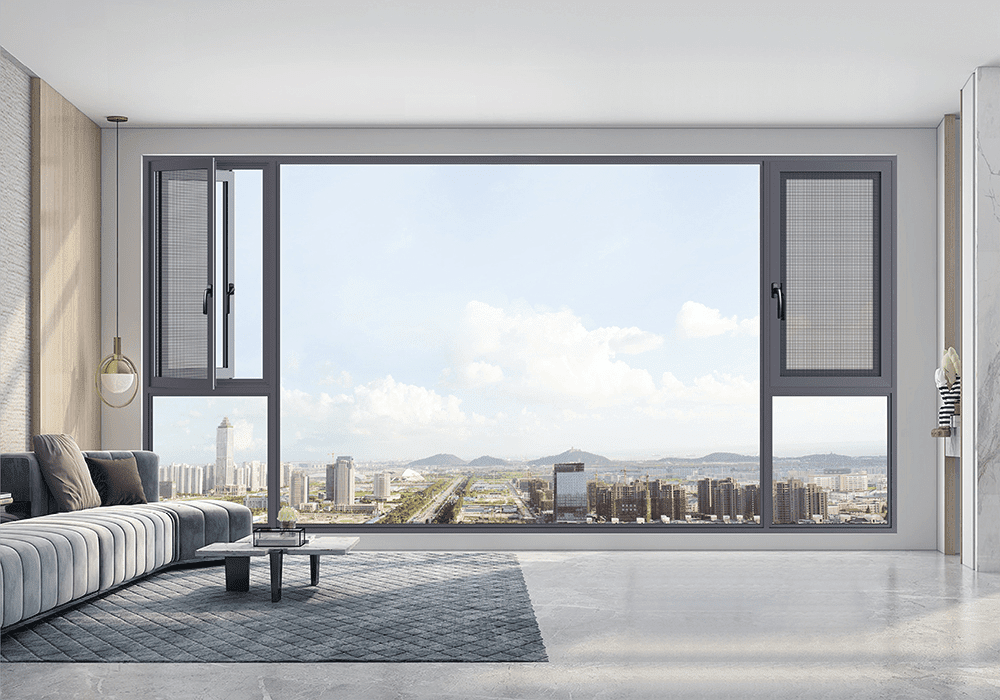

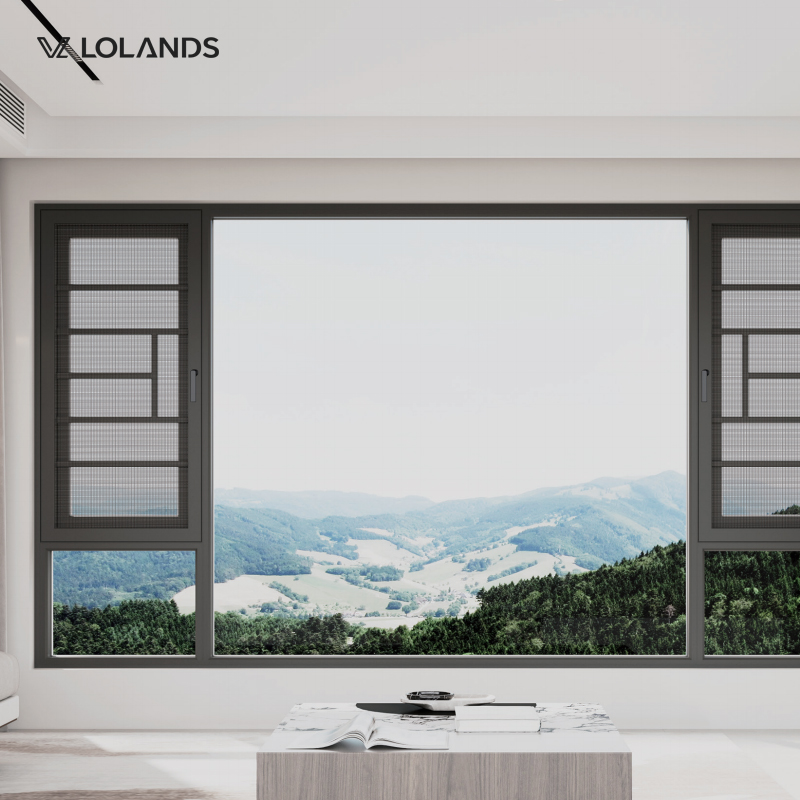

Phantom II (V118) series window screen integrated casement windows
-
Technical parameters:
Profile wall thickness 2.0mm -
Profile width:
frame 118mm/leaf 62mm -
Visible width:
frame 25mm/leaf 53mm -
Mesh configuration:
0.8mm diamond mesh/0.45mm high-definition mesh -
Rubber strip configuration:
EPDM composite foam continuous bending sealing strip -
Insulation strip configuration:
PA66-GF25 nylon insulation strip Hardware system: Vihagen (without base) handle+Vihagen transmission kit+anti fall rope -
Glass configuration:
5+27A+5mm hollow tempered glass -
colour:
Fluorocarbon black gold.jpg
Galactic gray.jpg
Metal fluorocarbon ash.jpg
Metal fluorocarbon champagne.jpg
Sand coffee.jpg
Skin gray oak.jpg
Spade wood.jpg
Taxus chinensis.jpg
-

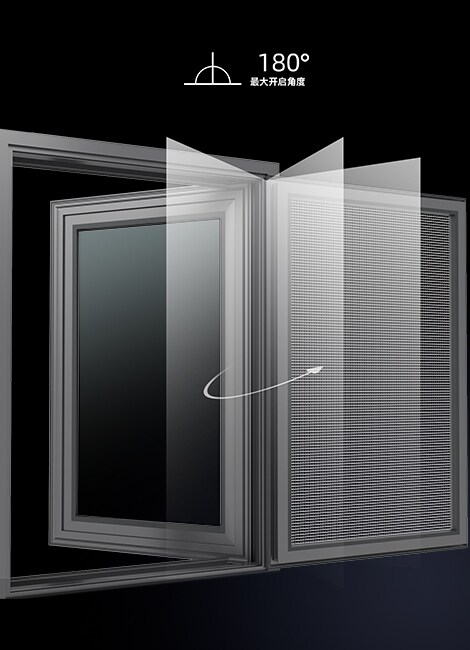

The gauze fan can be opened at an angle of0-180 °, saving indoor space, ensuring safetyand durability, and preventing insect infesta-tion for greater peace of mind
-

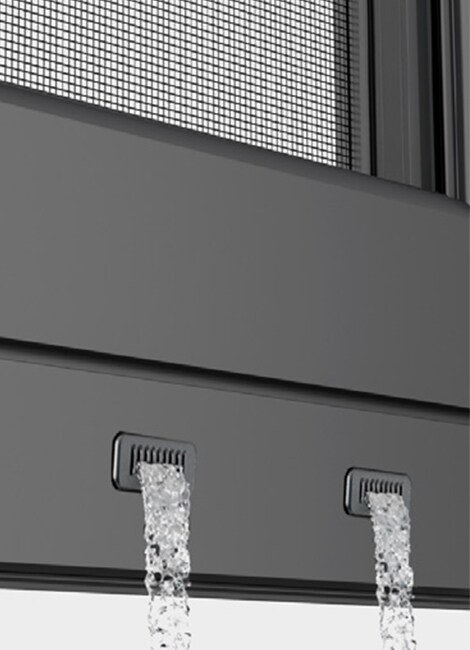

Floor drain drainage system allows for faster and smoother drain.age, effectively preventing rain backflow and keeping indoor dry
-
R protective angle, striving for excellence indetails, equipped with safety angle protectorsat the corners of each window, and human-ized anti-collision design
German light luxury craftsmanship

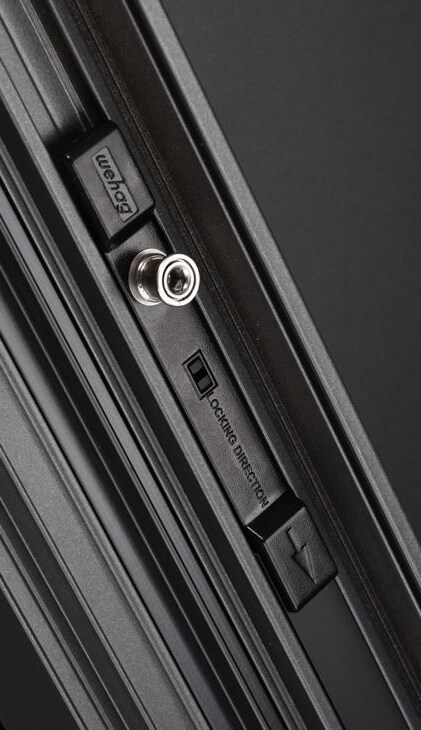

Vihagen transmission kit+anti fall rope
High quality EPDM sealant strip fomms a tight and airtight whole inside the cham-ber, enhancing water and air tightness to achieve the best sealing effect.

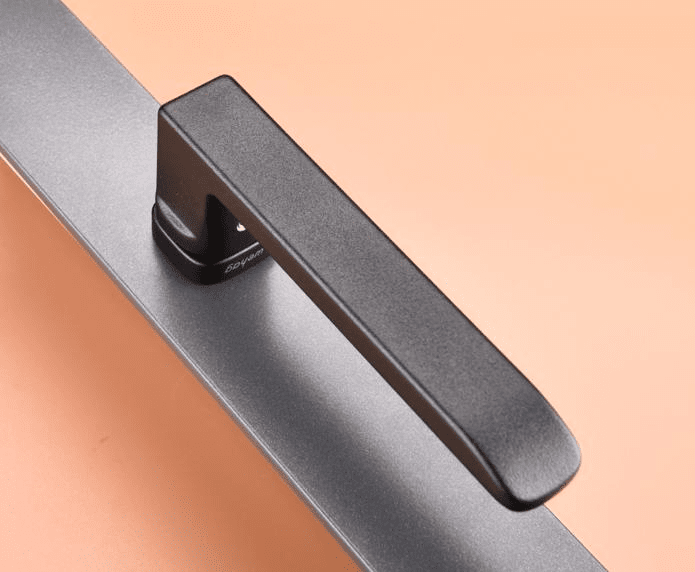

Vihagen (without base) handle
High quality EPDM sealant strip fomms a tight and airtight whole inside the cham-ber, enhancing water and air tightness to achieve the best sealing effect.

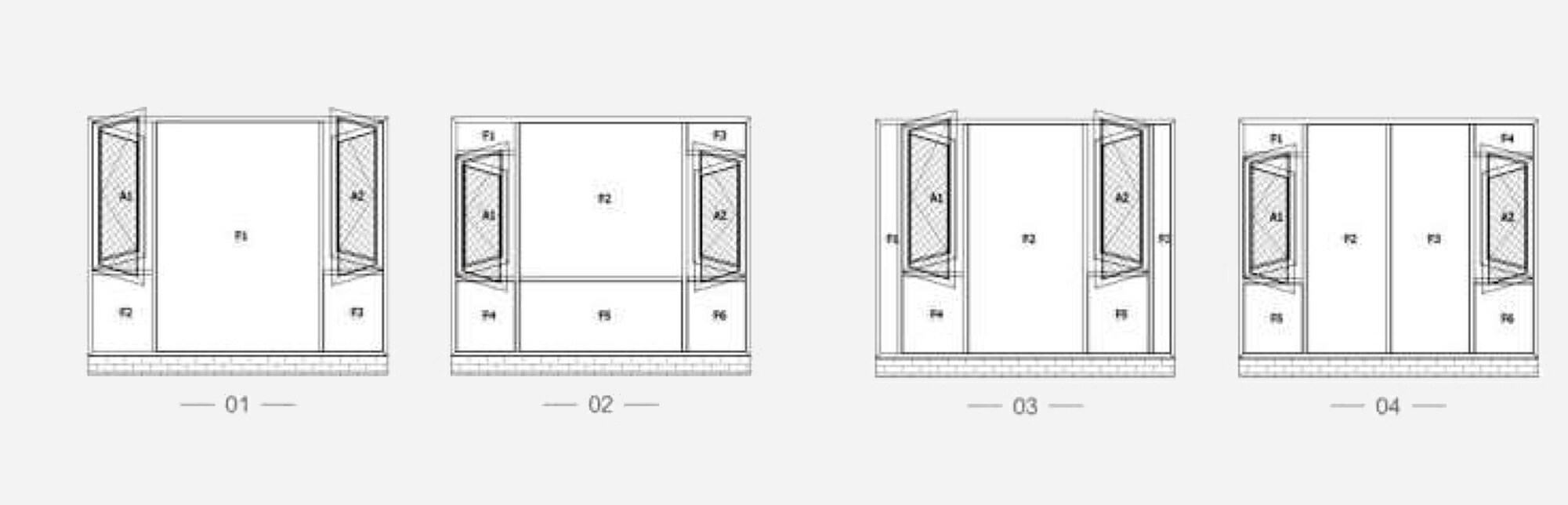

Opening method
German light luxury craftsmanship
-

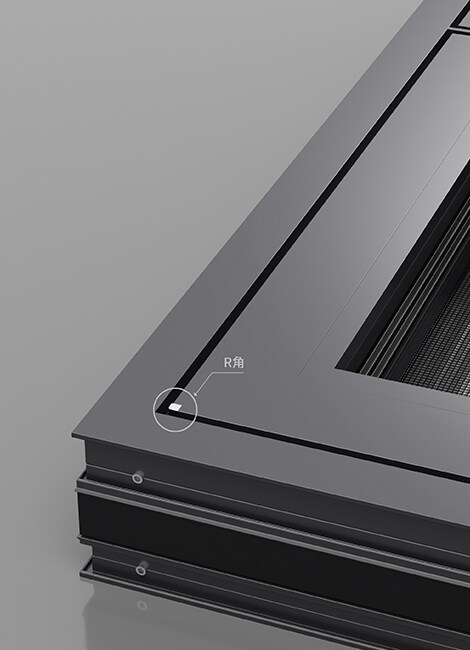

R-angle
High quality EPDM sealant strip fomms a tight and airtight whole inside the cham-ber, enhancing water and air tightness to achieve the best sealing effect.
-
Vihagen transmission kit+anti fall rope
High quality EPDM sealant strip fomms a tight and airtight whole inside the cham-ber, enhancing water and air tightness to achieve the best sealing effect.
-
Vihagen (without base) handle
High quality EPDM sealant strip fomms a tight and airtight whole inside the cham-ber, enhancing water and air tightness to achieve the best sealing effect.
